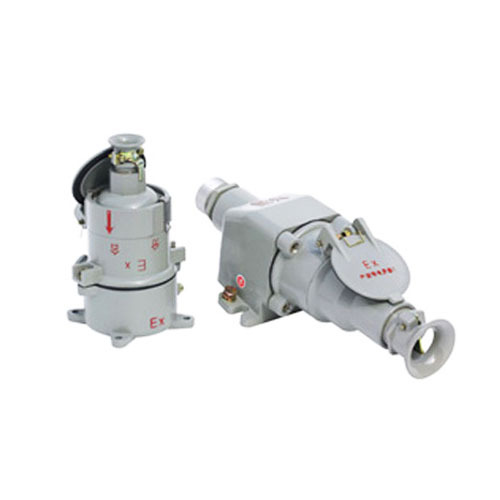

BCX53 Series Explosion proof plug and socket

Designed for Explosive atmosphere Zone 1, Zone 2

Combustible dust Zone 20 , Zone 21, Zone 22

Designed for Groups IIA,IIB,IIC

Temperature classes T1~T6

Designed for petroleum exploitation refinery, storage, chemistry, medicine, military and military facilities etc. sites with explosive atmosphere.

Current ratings available at 16A,32A

Mounting type :straight and lean type.

Enclosure is die casted of aluminum alloy with high voltage electrostatic powder coated surface after shot blasted

Built in interlock mechanism , plug can be draw out only after switch is cut off inside socket.

Compact structure and easy to manitain.

Steel pipe and cable wiring.

Compliance with:GB 3836.1,GB 3836.2,GB 3836.3,GB12476.1, IEC60079-0,IEC60079-1,IEC60079-7,IEC61241-1-1

Explosion protection:ExdeIIBT6,ExdeIICT6,DIPA20TA,T6

Rated voltage: AC220/380V

Poles:1P+N+PE,3P+PE

Rated current: 16A,32A

Using sort:AC-1,AC-3

Ingress protection:IP54,IP65

Corrosion resistance:WF1

Cable entries spec. G3/4",G11/4"

Cable’s outer dia.(mm).Φ9mm~Φ14mm,Φ14mm~Φ25mm
