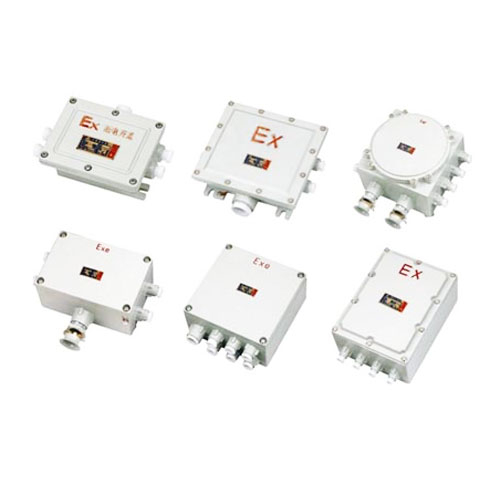

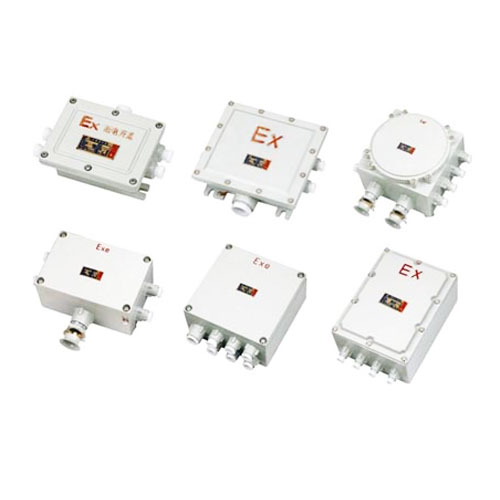

BJX Series Explosion Proof Junction Box

Availability:
Quantity:
Inquire Add to Basket

Designed for Explosive atmosphere Zone 1, Zone 2,Combustible dust Zone 21 ,Zone 22
Designed for Groups 21,22,Temperature classes T1~T6
Designed for petroleum exploitation ,refinery, chemistry, medicine, textile, painting, military and military facilities etc. site with explosive atmosphere.
Verious types terminals for options
Model Code

Enclosure is die casted of aluminum alloy, high voltage electrostatic powder coated surface.
Stainless steel enclosure is available as per request.
Special terminals easy to connection.
Cable entries direction can be made as per request, and BDM type cable glands is available as per request.
Plastic locking nut for cable entry below G1", aluminum cable glands for cable entry over G1". Please indicate when special requirement.
Thread type of cable entry is G type.Metric, NPT etc. threads are available as per request.

                Compliance with                GB3836.1,GB3836.2,GB3836.3,GB12476.1,  IEC60079-0,IEC60079-1,IEC60079-7,IEC61241-1-1
                Rated voltage:                AC380V/220V
                Rated current                10A,20A ,32A,40A, 60A, 100A, 400A
                Explosion protection                ExdII BT6,ExdII CT6,ExeII T6,DIP A21 TA,T6
                Ingress protection                IP65
                Cable entry                G1/2"~G2"
