1. Designed for Explosive atmosphere Zone 1,Zone 2. Combustible dust is Zone 21, Zone 22. 2.Designed for Groups IIA, IIB,IIC Temperature classes T1~T6 3. Designed for sites with explosive atmosphere such as petroleum exploitation, refinery, chemistry, medicine, textile, printing, Military and military facilities etc. 4.Used for electrical on-off or start for power equipment. 5.Components brand can be as per request.
1. Designed for Explosive atmosphere Zone 1,Zone 2. Combustible dust is Zone 21, Zone 22. 2.Designed for Groups IIA, IIB,IIC Temperature classes T1~T6 3. Designed for sites with explosive atmosphere such as petroleum exploitation, refinery, chemistry, medicine, textile, printing, Military and military facilities etc. 4.Used for electrical on-off or start for power equipment. 5.Components brand can be as per request.

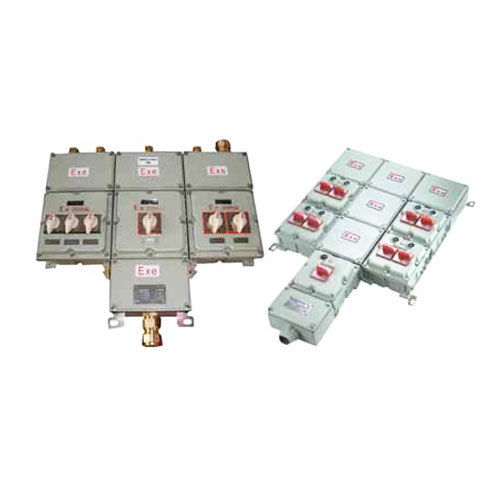

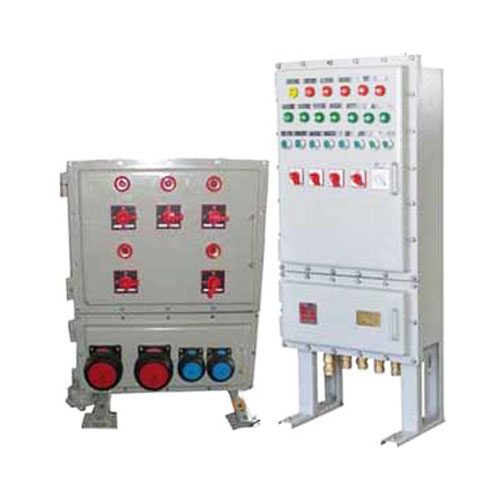

1. Enclosure is dies casted of aluminum alloy,high voltage electrostatic powder coated after shot blasted. 2. Compound structure, main compartment is of flameproof structure, connection compartment is of increase safety type. 3. Modular design, each circuit can be combined freely. 4. Built-in high breaking capacity MCB or MCCB ,AC contactor, changeover switch, thermal relay etc. 5. With display indicating lamp. 6. With overload short circuit protection, and leakage protection function can be equipped as per request. 7. Can be used for power circuit distribution or electrical apparatus starter, or for both. 8. Can be specifically made as per request. 9. Steel pipe or cable wiring.
1. Enclosure is dies casted of aluminum alloy,high voltage electrostatic powder coated after shot blasted. 2. Compound structure, main compartment is of flameproof structure, connection compartment is of increase safety type. 3. Modular design, each circuit can be combined freely. 4. Built-in high breaking capacity MCB or MCCB ,AC contactor, changeover switch, thermal relay etc. 5. With display indicating lamp. 6. With overload short circuit protection, and leakage protection function can be equipped as per request. 7. Can be used for power circuit distribution or electrical apparatus starter, or for both. 8. Can be specifically made as per request. 9. Steel pipe or cable wiring.
1. Compliance with:GB 3836.1,GB 3836.2,GB 3836.3,IEC60079-0,IEC60079-1,IEC60079-7 2.Explosion Protection:ExdeIICT6 3. Rated voltage:AC380V, AC220V,AC440,AC660V 4. Rated current of main circuit breaker:≤400 5.Branch number:4,6,8,10,12 6.Rated current of branch: ≤160 7.Ingress protection:IP65 8.Corrosion resitance: WF1 9. Cable entries:G1/2"~G3" 10.Cable's outer diameter :Φ6mm~Φ55mm 11. Cable entries direction: Downwards inlet and downwards outlet or downwards inlet or upwards outlet (normal type is downwards inlet and outlet, please indicate whwen other requirements) 12.Mounting types:pendant or vertical type
1. Compliance with:GB 3836.1,GB 3836.2,GB 3836.3,IEC60079-0,IEC60079-1,IEC60079-7 2.Explosion Protection:ExdeIICT6 3. Rated voltage:AC380V, AC220V,AC440,AC660V 4. Rated current of main circuit breaker:≤400 5.Branch number:4,6,8,10,12 6.Rated current of branch: ≤160 7.Ingress protection:IP65 8.Corrosion resitance: WF1 9. Cable entries:G1/2"~G3" 10.Cable's outer diameter :Φ6mm~Φ55mm 11. Cable entries direction: Downwards inlet and downwards outlet or downwards inlet or upwards outlet (normal type is downwards inlet and outlet, please indicate whwen other requirements) 12.Mounting types:pendant or vertical type
