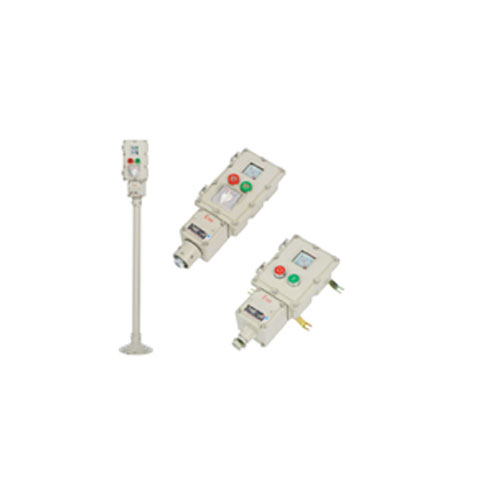

BZC8050 Type Explosion Proof control station

1.Enclosure is made form glass reinforced polyester, with the elegant shapemment corrosion resistance ,static electricity resistance, impact resistance and good  thermal reliability.
2.Increased safety enclosure ,built-in explosion protection components.
3.Built-in indicator light, pushbutton, conversion switch ,ammeter ,voltmeter ,potentiometer etc. and other components can be as per request.
4.Built-in explosion proof control switch, with more advantages, such as compact structure, reliable quality, smaller volume, high capacity of turning on/ off, long life, also with a lot functions for user to choose.
5.Built-in explosion proof button with special cementing treatment to ensure reliable cementing.
6.Built-in explosion proof indicator and uses a special design with AC220/380V.
7.Labyrinth sealing structure designed and with waterproof and dustproof functions.
8.Exposed fasteners of stainless steel material of anti drop design, convenient for installing and maintainance.
9.Steel pipe wiring or cable wiring.

1.Rated voltage:AC220V/380V ,as per requirement
2.Rated current:10A
3.Ingress thread specification:G1"
4.Cable's outer dia:9mm~18mm
5.Using sort:AC-3; AC-4;AC14
6.Explosion protection:ExedIICT6
7.Ingress protection:IP65
8.Corrosion resistance:WF2
9.Compliance with :GB 3836.1,GB 3836.2,GB 3836.3,IEC60079-0,IEC60079-1,IEC60079-7
