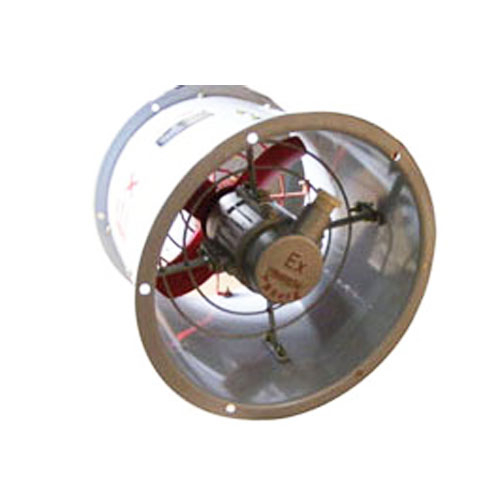

Explosion proof Axial Fan

1,Designed for Explosive atmosphere Zone 1, Zone 2

2,Designed for Groups IIA,IIB,IIC, Temperature classes T1~T4

3,Designed for sites with explosive atmosphere, such as  petroleum exploitation, refinery, storage, chemistry, medicine, military facilities, etc.

Features

1, Explosion proof axial fan is composed of explosion proof motor, fan blade ,wind cylinder,etc.

2, Wind cylinder is welded of superior quality steel plate, die casted fan of Aluminium alloy

  with high pressure electrostatic plastic-sprayed surface.

3,Mounting mode has four ways can be chosen: Bracket type, pipe type, post type, fixed type.

4, Steel pipe wiring and cable wiring.

1,Explosion protection: Exd IIBT4

2,Rated voltage:AC 220/380V

3,Main shaft revolution:1450 r/min

4,Corrosion proof grade:WF1

5,Ingress thread specification:G3/4"

6,Cable's outer diameter:9mm~14mm

7,Compliance with: GB 3836.1,GB 3836.2,IEC60079-0,IEC60079-1
