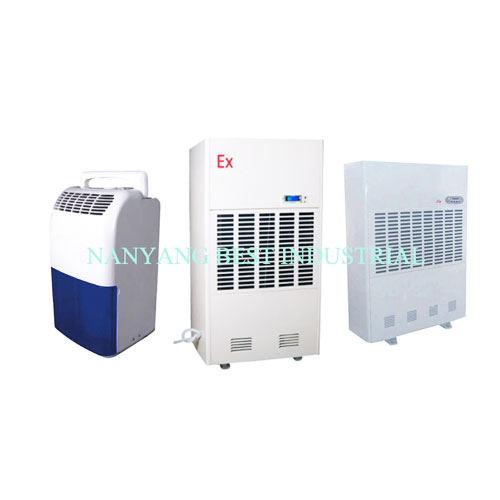

Explosion proof dehumidifier

Availability:
Quantity:

1.1. Applied range: Storeroom, like precious machines, instruments, computers Bank, library, museum, garment company and carport.In rainy day, it can keep your room dry and comfortable, avoid mildewing your furniture, carpet or clothes.No matter what makes your room moist, use this machine can makes you comfortable.

1.2. Indoor use of frame structure, LCD display, using ultra-quiet design, the noise is small, fully automatic operating.
1.3. Automatic self-test failure program, automatic switch setting.
1.4. Use of brand-name expansion valve as a throttling element, according to load flexibility in adjusting the refrigerant flowing .
1.5. Use of comedy within the copper tube and the hydrophilic thread fin, heat transfer efficiency is high.
1.6. With brand microcomputer automatic control system, with automatic fault diagnosis function, running, saving time, saving electricity.
1.7. The high quality components are used to ensure the long-term efficient operation goes well.
1.8. The products are used in the hazardous area for the oil, gas, petrochemical, pharmaceutical and marine industries etc.

1.9 This type of explosion proof dehumidifier is up to the standards of the products quality surveillance of national explosion-proof electrification, and has obtained the explosion proof certificate . Such explosion proof split wall mount air conditioners can be used in Used in the hazard area:

 Zone 1,Zone 2 ,Groups IIA,IIB,IIC (IEC hazard area classification),

Class 1/Division 1,Class 1/Division 2, Group B,C,D area.(NEC hazard area classification).

Category 2G,3G(ATEX hazard area classification)

Suitable used in the temperature range:T1,T2,T3,T4

Explosion-proof mark : Exdmbib Ⅱ BT4, Exdmbia Ⅱ CT4  .Explosion proof protection can be designed according to the ambient environment.

This explosion Proof dehumidifier are produced based on the explosion proof equipment standards as below:

GB3836.1-2010《Electrical apparatus for explosive gas atmospheres Part one: General requirements and test methods》, which is equivalent to IEC60079-0:2007

GB3836.2-2010《Electrical apparatus for explosive gas atmospheres Part two: Flameproof enclosure “d”》,which is equivalent to IEC 60079-1:2007

GB3836.4-2010《Electrical apparatus for explosive gas atmospheres Part four: Intrinsic safety “i”》,which is equivalent to IEC 60079-11:2006)

GB3836.9-2010 《Electrical apparatus for explosive gas atmospheres Part nine: Encapsulation “m”》,which is equivalent to IEC 60079-18:2004 .

Item

model

Dehumidifying

Capacity

(L/h)

Rated current (A)

Power

Consumption

(W)

Voltage(V)

Frequent(Hz)

CFM

M3/ h

Size(mm)



BCF-1.1

1.1

3.5

750





220V

50Hz

500

370*345*645

BCF-1.6

1.6

4

900

500

370*345*645

BCF-2.4

2.4

4.5

980

850

390*520*770

BCF-3.2

3.2

9

2000

1000

540*460*1030

BCF-5

5.0

105.

2200

1100

540*460*1130

BCF-6

6.5

12

2400

1350

550*470*1180

BCF-7

7.0

6.2

3200



380V

50Hz

1800

600*680*1260

BCF-10

10

8.3

4800

2400

880*590*1710

BCF-15

15

15

7600

4800

1300*590*1940

BCF-20

20

22

11000

5600

1300*590*1940

Ex Mark:



Exdmbib Ⅱ   BT4    Exdmbia Ⅱ CT4
