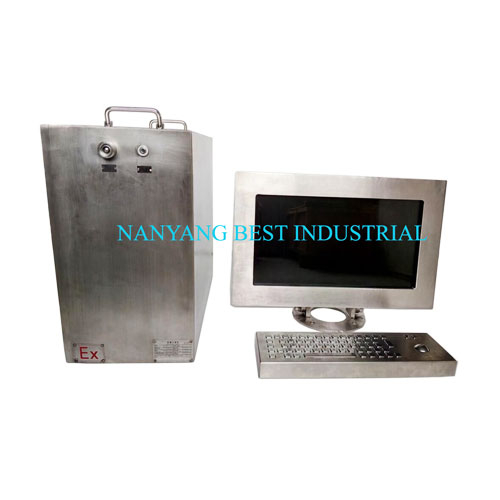

Explosion proof desktop

1. This explosion proof desktop is used in the hazard area Zone 1,Zone 2 (IEC hazard area classification),Class 1,Division 2, Group B,C,D area.(NEC hazard area classification).Explosion-proof mark : ExdibⅡBT4 Gb

2. Small size,it is light-weight,corrosion proof enclosure with SS304 material, easily installed.
3. Fast running speed, the shortest start time is 6 seconds.
4. Tiptop hardware configuration make the PC wok with high performance.
5. Support with the interfaces:USB,WLAN,parallel port, series port.

6.with explosion proof/intrinsically safe keyboard

The explosion Proof computers are produced based on the China’s Ex standards as below:

GB3836.1-2010《Electrical apparatus for explosive gas atmospheres Part one: General requirements and test methods》, which is equivalent to IEC60079-0:2007

GB3836.2-2010《Electrical apparatus for explosive gas atmospheres Part two: Flameproof enclosure “d”》,which is equivalent to IEC 60079-1:2007

GB3836.4-2010《Electrical apparatus for explosive gas atmospheres Part four: Intrinsic safety “i”》,which is equivalent to IEC 60079-11:2006

Explosion proof desktop
Model No.	BTJ-2
Ex-Marking	Exd ibIIB T4 Gb
Protection grade	IP54
Input voltage	AC220V (AC100-265V 50/60Hz)
Working current	≤3A
Main board	H81
CPU	Intel I3-4170 Dual Core 3.4G
Memory	DDR3 1600 4G(expandable to be 32GBMax.)
Hard disk	SSD 500G, 1T(optional)
Display monitor	17" with display pixels 1280*1024
Ethernet	100/1000M
Ports	USB2.0,WLAN,RS232,DB25(optional)
Accessory	keyboard with integrated mouse
Operating system	WIN XP /WIN7 /WIN8( english version)(Optional)
Case material	Stainless steel 304
Net weight	36kg(host) 18kg(Monitor)
Installation	Standing alone/Hanging
Cable inlets	G1/2*6
Dimension(WHD)	502304160mm(Host) 490465230mm(Monitor)
Air pressure	80～106KPa
Ambient temp.	-25℃~+60℃
Relative humidity	≤95%RH(+25℃)
