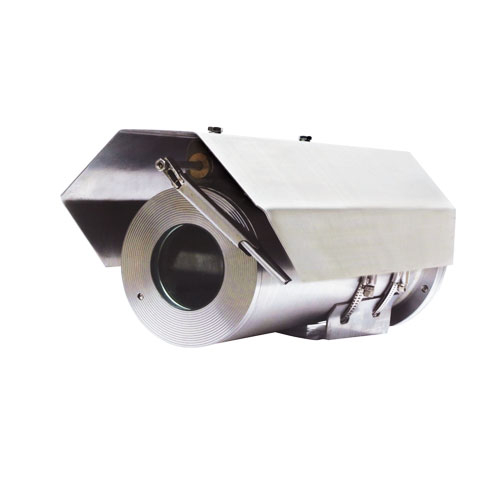

Explosion proof fix Camera

Model No.:YTS-A1

Application:This explosion proof fix camera is used in the hazard area Zone 1,Zone 2.

Specification:

Explosion-proof Marking :ExdⅡCT6  Ex DIP A21 TA，T6

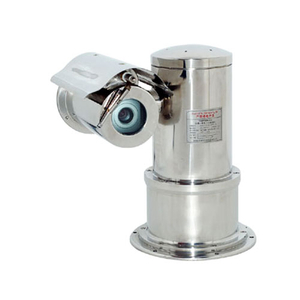

Mounting: Can be set separately or together with the YTY-A7 Pan/Tilt

Enclosure Protection: IP68

Ambient Temperature : –30℃～+60℃

Input Voltage: DC12V  Current: ≤800mA     Power consumption:≤15 W    Material：SS304

Communication Mode: RS-485

Cable outlets: 2      Screw type : G-3/4”

Communication Agreement: Pelco-D Pelco-P According to Client's Demands

Communication Speed：2400～19200bps

Preset ：128，Accuracy ≤0.2º

CAMERA SPECIFICATION :

• 1/4" Super HAD  CCD

• 25x(f=3.6 ~ 91mm) Optical Zoom Lens (16x D-Zoom)

• Min. Object Distance : 1000mm•

• High Resolution : 600 TV Lines(colour)/700 TV Lines(black/white)

• Min. illumination0.004 Lux (F1.6, 15 IRE, Color, Sens-Up 512x)

• DayNight Function

• Full Auto focus function

• DIS, XDR, Adaptive DNR(2D/3D), PIP

• Privacy Mask zone (12 Area)

• Multi-Protocol support (8ea), Multi-OSD support• Remote Control : RS485, Data on Coaxial Cable
