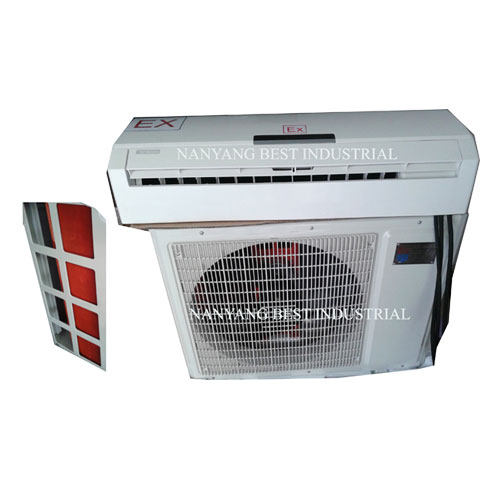

1.The explosion proof marine air conditioner unites are Exclusively designed for the ships, offshore drilling platform , used in the hazardous area for marine industries .
2.Suitably used in the T1 –T4 environment .
3.The adoption of international famous brand compressor, industrial machine design, makes the system safety and reliability, heating/cooling with high efficiency, long life of operation.
4.Condenser, evaporator, through the specially designed dust-proof performance, used well in the salty environment .
5.Use of corrosion proof copper tube and fins, heat transfer efficiency is high。
6.Wide band voltage design, power supply voltage in the case of the relatively less stable and reliable operation .
7.Split wall mount installation type can be installed easily.
8.Environmental Protection: with filtration, ventilation, cooling and other features .
9.Adoption of international standards of explosion-proof technology, explosion-proof high-performance, more safety .
10.Explosion-proof mark : Exdmbib Ⅱ BT4, Exdmbia Ⅱ CT4. Explosion proof protection can be designed
1.The explosion proof marine air conditioner unites are Exclusively designed for the ships, offshore drilling platform , used in the hazardous area for marine industries .
2.Suitably used in the T1 –T4 environment .
3.The adoption of international famous brand compressor, industrial machine design, makes the system safety and reliability, heating/cooling with high efficiency, long life of operation.
4.Condenser, evaporator, through the specially designed dust-proof performance, used well in the salty environment .
5.Use of corrosion proof copper tube and fins, heat transfer efficiency is high。
6.Wide band voltage design, power supply voltage in the case of the relatively less stable and reliable operation .
7.Split wall mount installation type can be installed easily.
8.Environmental Protection: with filtration, ventilation, cooling and other features .
9.Adoption of international standards of explosion-proof technology, explosion-proof high-performance, more safety .
10.Explosion-proof mark : Exdmbib Ⅱ BT4, Exdmbia Ⅱ CT4. Explosion proof protection can be designed
Spec. model | Cooling/ Heating Capacity (BTU/h) | Power Cooling/ Heating Consumption (W) | Voltage(V) Frequent(Hz) | Air flow M3/ h | Size(mm) Indoor Outdoor |
BST-2.5C |
9000/9800 | 742/798 | 110/60 208-230/60 220-240/50/60 |
540 | 790*265*170 818*540*320 |
BST-3.5C |
12000/13000 | 1068/1120 | 110/60 208-230/60 220-40/50/60 |
660 | 845*300*185 848*540*320 |
BST-5.0C |
18000/20000 | 1800/1950 | 110/60 208-230/60 220-240/50/60 |
850 | 920*320*220 840*630*310 |
BST-7.0C |
24000/24500 | 2360/2380 | 110/60 208-230/60 220-240/50/60 |
1100 | 1178*330*260 980*790*420 |
Spec. model | Cooling/ Heating Capacity (BTU/h) | Power Cooling/ Heating Consumption (W) | Voltage(V) Frequent(Hz) | Air flow M3/ h | Size(mm) Indoor Outdoor |
BST-2.5C |
9000/9800 | 742/798 | 110/60 208-230/60 220-240/50/60 |
540 | 790*265*170 818*540*320 |
BST-3.5C |
12000/13000 | 1068/1120 | 110/60 208-230/60 220-40/50/60 |
660 | 845*300*185 848*540*320 |
BST-5.0C |
18000/20000 | 1800/1950 | 110/60 208-230/60 220-240/50/60 |
850 | 920*320*220 840*630*310 |
BST-7.0C |
24000/24500 | 2360/2380 | 110/60 208-230/60 220-240/50/60 |
1100 | 1178*330*260 980*790*420 |
