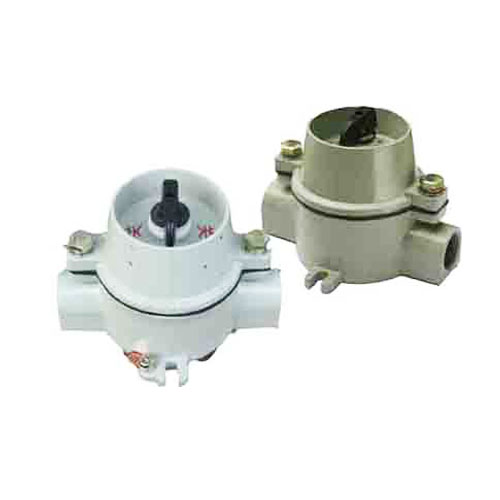

SW-10 Series Explosion Proof Light Switch (IIB, DIP)

Availability:
Quantity:

1.Design for  Explosive atmosphere Zone 1,Zone 2
Combustible dust Zone 20 , Zone 21, Zone 22
2.Designed for Groups IIA,IIB;    Temperature classes T1~T6
3.Designed for sites with explosive atmosphere such as  petroleum exploitation, refinery, storage, chemistry, medicine, textile, printing, military and military facilities etc..
4.Used for switching for lighting circuit.

1.Enclosure is die casted of aluminum alloy with high voltage electrostatic powder coated surface after shot blasted.
2.Built-in combination switch with stable property.
3.Special designed water resistance and dust resistance gasket.
4.With good water resistance and dust resistance property, etc.
5.Steel conduit and cable wiring.
                1                Compliance with                GB3836.1,GB3836.2,GB3836.3,
IEC60079-0,IEC60079-1,IEC60079-7
                2                Explosion protection                Exed IIBT6, DIPA20TA,T6
                3                Rated voltage                AC220V
                4                Pole                single pole
                5                Rated current                10A
                6                Ingress protection                IP65
                7                Corrosion resistance                WF1
                8                Cable entries Spec.                2-G3/4"
                9                Cable’s outer dia.                Φ9mm~Φ14mm
