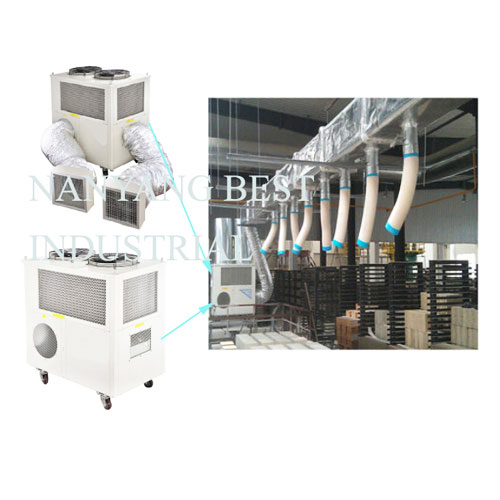

Explosion proof Portable Air Conditioner

Availability:
Quantity:

This Explosion proof portable air conditioners use advanced and efficient fin type of clear water membrane cooling fin and inner thread heat pipe, imported high efficient soft scroll compressor and low noise fan are equipment. You need only light contact not only has the function of cooling, dehumidifying, but also has the movable temporary housings, but also in the workshop equipments, mini-type of production line, elevator equipment rooms and special work posts and environments such as factories.

This equipment can be placed indoors or outdoors and can give out fresh air As for the cold air vent, you can use one or multiple vents to give out the wind High power

This product is up to the standards of the products quality surveillance of national explosion-proof electrification, and has obtained the explosion-proof certificate of competency.

Suitably used  in the  hazardous area for the oil, gas, petrochemical, pharmaceutical and marine industry .

Advanced technology on anti-corrosion and anti-dust.

This explosion proof movable air conditioner can be used in the hazard area Zone 1,Zone 2 (IEC hazard area classification),Class 1,Class 2,Division 1,Division 2, Group B,C,D area.(NEC hazard area classification)

.Explosion-proof mark : Exdmbib Ⅱ BT4, Explosion proof protection can be designed according to the ambient environment.

Model No.

BST-8.0Z

BST-14Z

BST-25Z

Input power

V/Hz/Phase

380/50/3

380/50/3

380/50/3

Cooling capacity

KW

8

14

25

BTU/h

27300

47700

85300

Cooling air flow

M3/h

1300

1800

3300

Power

kW

3.1

5.5

11.2

Rated current

A

6

10.2

20

Dimension

mm

W900

D700

H1000

W1150

D726

H1200

W1330

D950

H1460

Net weight

kg

130

200

360

Ambient temperature

18-45

Ex-marking

Exd mbibⅡB T4
