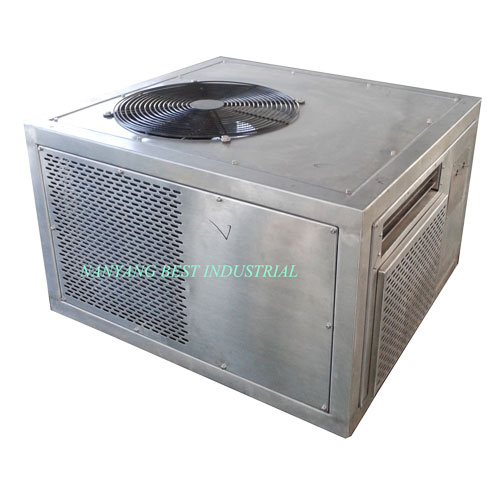

Explosion proof Window AC

Availability:
Quantity:

1.1. The adoption of international famous brand compressor, industrial machine design, makes the system safety and reliability, heating/cooling with high efficiency, long life of operation

1.2.Suitably used  in the  hazardous area for the oil, gas, petrochemical, pharmaceutical and marine industry .

1.3.There are various of types such as  high temperature type, low temperature type ,which can satisfy different requests.
1.4.Special design suitable used in the highest ambient temperature up to be 70℃

1.5. Optional refrigerant types of R22,R134A,R417A,R407C

1.6.This type of explosion proof window air conditioner is up to the standards of the products quality surveillance of national explosion-proof electrification, and has obtained the explosion proof certificate . Such explosion proof split wall mount air conditioners can be used in Used in the hazard area:

 Zone 1,Zone 2 ,Groups IIA,IIB,IIC (IEC hazard area classification),

Class 1/Division 1,Class 1/Division 2, Group B,C,D area.(NEC hazard area classification).

Category 2G,3G(ATEX hazard area classification)

1.7.Explosion-proof mark : Exdmb Ⅱ BT4, Exdmb Ⅱ CT4 .Explosion proof protection can be designed according to the ambient environment.

This explosion Proof window AC are produced based on the explosion proof equipment standards as below:

GB3836.1-2000《Electrical apparatus for explosive gas atmospheres Part one: General requirements and test methods》, which is equivalent to IEC60079-0:1998

GB3836.2-2000《Electrical apparatus for explosive gas atmospheres Part two: Flameproof enclosure “d”》,which is equivalent to IEC 60079-1:1990

GB3836.9-1990 《Electrical apparatus for explosive gas atmospheres Part nine: Encapsulation “m”》,which is equivalent to IEC 60079-18.


                     Model

Spec.

BCKT-4.5

BCKT-8.5

BCKT-12

Cooling(BTU/h)

16000

30000

41000

Power   consumption(W)

1550

2950

3970

Ambient   temperature

5℃- 70℃



5℃- 70℃



5℃- 70℃



Air   flow  M3/ h

700

1100

1500

Size (mm)   W*H*D

760*500*820

900*700*1200

900*700*1200

Voltage  /Frequent

220-240V

380V

380V

50/60Hz

50/60Hz

50/60Hz

Ex Marking:

Exdmb Ⅱ   BT4,  Exdmb Ⅱ CT4
